Product Details
- Product Dimensions: 14.4 x 16.8 x 3.6 inches ; 8.8 pounds
- Shipping Weight: 10 pounds (View shipping rates and policies)
- Shipping: Currently, item can be shipped only within the U.S.
- ASIN: B001NFHF6I
- Item model number: TS-A6993R
By : Pioneer
List Price :
Price : $74.99
You Save : $105.01 (58%)
Product Description
Amazon.com Product Description
Pioneer's TS-A6993R 6-by-9-inch five-ways now feature upgraded power handling of 460 watts max. (80 watts nominal). And this year, the A-Series speaker line feature something they've inherited from the D-Series speakers, a basalt cone. Pioneer continues to set an example with next-generation technology for improved sound: the tweeter, magnets, surrounds, the voice coil wire, the basket and more are all high-performance components that make up a great speaker.
Pioneer's A-Series SpeakersPioneer A-series speakers outperform factory speakers on nearly every level. Packing a powerful punch, A-Series speakers are equipped with up to three independent tweeters with reinforced woofers, so every beat is heard and felt. Featuring a bigger, better cone than most OEM speakers, the A-series boasts serious output and booming bass. Extra-sensitive tweeters play at higher frequencies and are capable of handling stronger audio signals, resulting in vocals that are crisp and clear, even when you crank the volume.
TS-A6993R Features
Carbon Graphite IMPP Interlaced Aramid/Basalt Fiber ConeOne of our major speaker breakthroughs was IMPP (Injection-Molded Polypropylene), which allowed cones to be lighter AND more rigid. Then we added long stands of Aramid fibers into the mix, for extra strength. Now, we've gone even further with the TS-A6993Rs, adding basalt and carbon graphite interlaced with long aramid fibers to provide strength and rigidity that powerful bass sound requires. High-density compressed internal architecture is resilient, stacks up against high power well and transfers sound quickly. The result is full-bodied, rich sound with midrange depth that conventional IMPP cones cannot match, and the durability to stand up to the high volume levels, humidity, and temperature extremes that thrash other speakers.
Large Diaphragm TweeterThe newly developed tweeter disperses sound more widely with superior control, providing listeners with the best sound under all conditions, regardless of listening position or car. And the 1" mounting depth achieves more flexible installation.
Heat Resistant Polyester-Imide Resin Voice Coil WireCreating mechanical energy is hot work, especially at high volume levels. And as we all know, heat can cause distortion. That's why the TS-A6993R uses a heat-resistant polyester-imide resin voice coil wire. It allows the voice coil to handle more heat, improving input power handling as well as reliability. So go ahead. Turn it up.
Power HandlingThe TS-A6993R now handles a full 460 watts max. power (80 watts nominal). Along with enhanced power handling, you still get the same high performance that all the TS-A's deliver

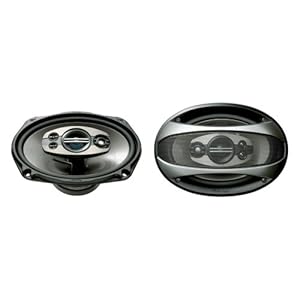

A five-way speaker with 460 watts power handling. Click to enlarge.
TS-A6993R Specs
Woofer Cone Material:
Carbon Graphite IMPP Interlaced Aramid/Basalt Fiber Cone
Surround:
Light Weight Elastic Polymer
Voice Coil Bobbin:
Glass-Imide
Voice Coil Wire:
Light Weight Copper Clad Aluminum
Damper:
Aramid Fiber
Midrange:
1" Soft Dome
Tweeter:
1-1/8" paper cone with Neodymium Magnet
Supertweeter:
Two 3/8" PET Film Domes
Basket Design:
Full Depth Basket for Rich Bass Response
Speaker Grille:
Included
Watts MAX. Music Power:
460 Watts
Watts Nominal Power Handling:
80 watts
Frequency Response:
30 Hz to 37 kHz
Sensitivity (1W/1m):
92 dB
Ohm Rating:
4
Mounting Depth:
3-1/4" (85mm)
Cut-out Dimensions:
6" x 8-5/8" (151mm x 220mm)
Pioneer Car Audio SystemsPioneer's Mobile Business Group is known for offering the kind of in-car products that make driving more enjoyable by offering high quality audio and video, seamless connectivity and ease-of-use. Its focus is on the development of new digital technologies including audio video, navigation and satellite radio, while maintaining its strong heritage in products for car audio enthusiasts and sound competitors.
What's in the BoxPioneer TS-A6993R Five-Way Speaker (Pair), Mounting Hardware, Installation Guide
Pioneer's TS-A6993R 6-by-9-inch five-ways now feature upgraded power handling of 460 watts max.
Pioneer TS-A6993R 6-Inch X 9-Inch, 460-Watt 5-Way Speakers
Technical Details
- 6-by-9-inch, five-way speakers with 460 watts maximum power handling (80 watts nominal)
- Woofers feature carbon graphite IMPP interlaced aramid/basalt fiber cone with polymer surround
- 1-inch soft-dome midrange, 1-1/8-inch paper cone tweeter, two 3/8-inch PET film dome supertweeters
- Heat-resistant polyester-imide resin voice coil wire for improved power handling
- 30 Hz to 37 kHz frequency response with 92 dB sensitivity
Customer Reviews
Great great speakers. The bass is almost like "true bass". The clarity is outstanding. I would tell anyone this product is great and needs to be purchased. I think I'll need to purchase an Amp just to get the full effect of what this speaker has to offer. GREAT GREAT BUY!
removed the jbl factory system in my 95 town car these speaker sound great pioneer head unit no amp great highs mids and bass for the money u cant beat them. i have a 12in sub in my tahoe this puts out just as good , u cant go wrong
